GS series 1-12kw split phase design Hybrid Solar Inverter
With reliable intelligent design, Gs series solar inverter can be available to complicated appliances. Not only used for common appliances such as TV computer, lights, fans.but also suitable for inductive loadings such as refrigerators, airconditioners, motors, pumps compressors and laser printers.
Category:
- Specifications
- Details
- Enquiry
- Technical Data
- Downloads
-
- Commodity name: GS series 1-12kw split phase design Hybrid Solar Inverter
- Commodity ID: 1037782557585661952
With reliable intelligent design, Gs series solar inverter can be available to complicated appliances. Not only used for common appliances such as TV computer, lights, fans.but also suitable for inductive loadings such as refrigerators, airconditioners, motors, pumps compressors and laser printers.
Features:

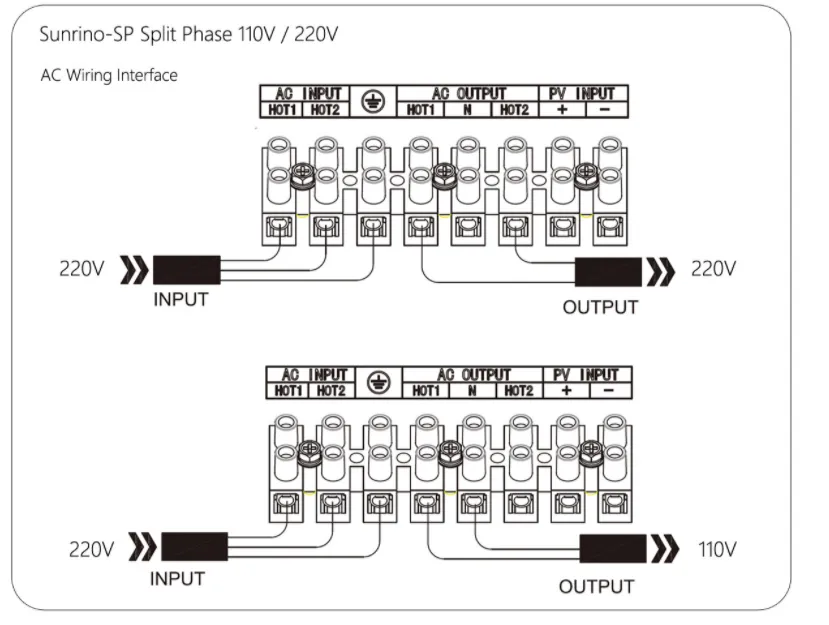

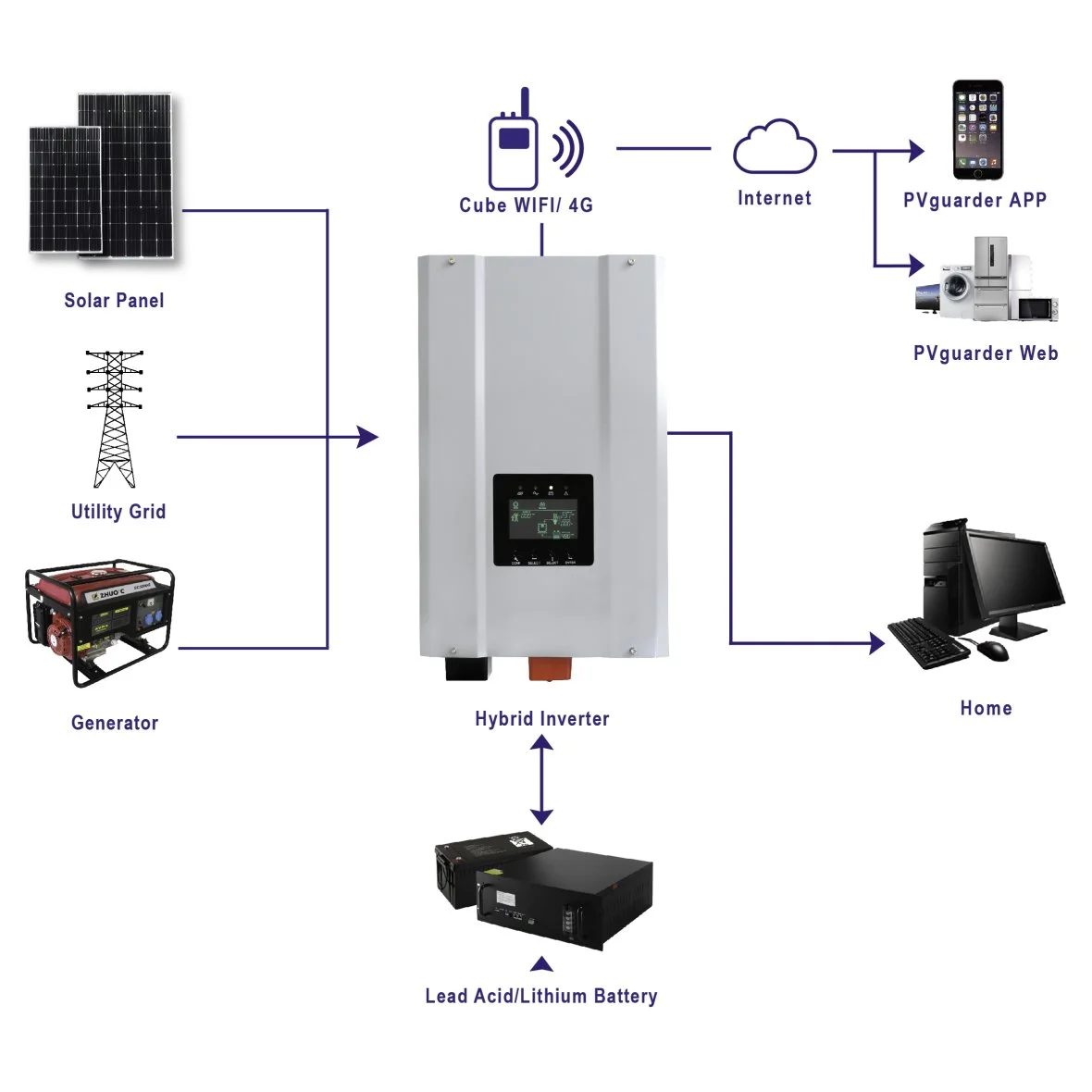

♦ GS Series AC/Solar charging Off grid Hybrid Inverter rated power 1KW to 12KW.♦ LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design.♦ Built-in 40A/60A/120A optional MPPT solar charger controller.♦ LCD shows the solar capacity.♦ Adjustable 5 stagesAC charging current. AC charging also can be closed.♦ AC/DC priority modes can be set.♦ Generator restart signal. (Dry contact).♦ 3 times peak power. Strong loading capacity.♦ Overload, output short-circuit protection.♦ Apply to Split Phase system,2 live lines 1 neutral line,voltage is 120/240V ,110v/220v or100v/200vSpecifications:

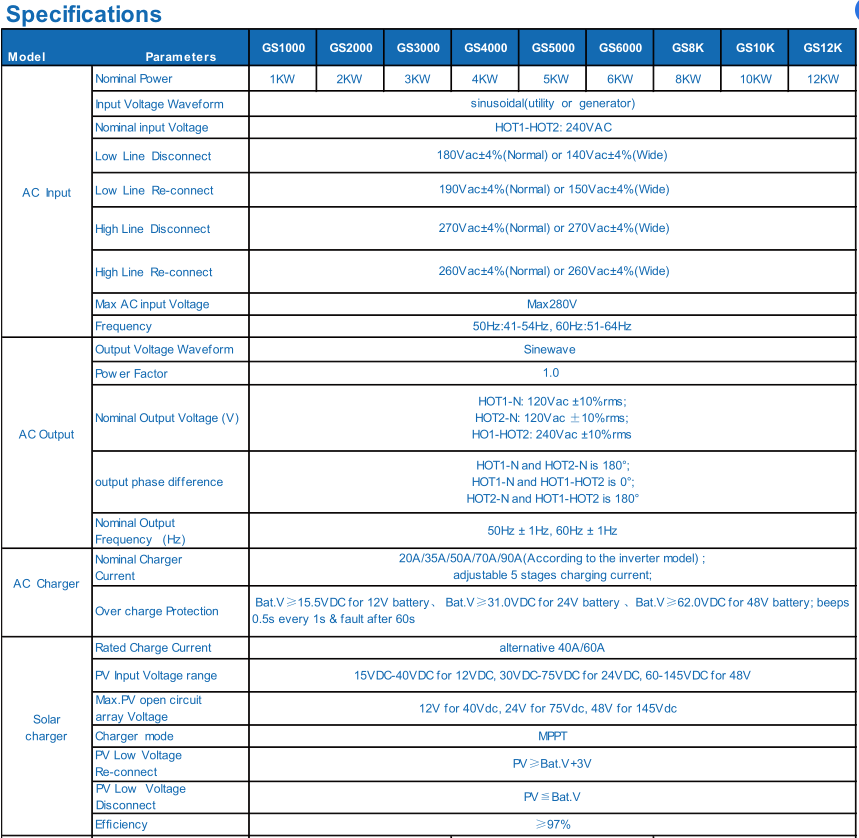

Model Parameters GS1000 GS2000 GS3000 GS4000 GS5000 GS6000 GS8K GS10K GS12K AC Input Nominal Power 1KW 2KW 3KW 4KW 5KW 6KW 8KW 10KW 12KW Input Voltage Waveform sinusoidal (utility or generator) Nominal input Voltage HOT1-HOT2: 240VAC Low Line Disconnect 180Vac±4%(Normal) or 140Vac±4%(V\4de) Low Line Re-connect 190Vac±4%(Normal) or 150Vac±4%(Wide) High Line Disconnect 270Vac±4%(Normal) or 270Vac±4%(Wde) High Line Re-connect 260Vac±4%(Normal) or 260Vac±4%(\A4de) Max AC input Voltage Max280V Frequency 50Hz:41-54Hz, 60Hz:51-64Hz AC Output Output Voltage Waveform Sinewave Power Factor 1.0 Nominal Output Voltage (V) HOT1-N: 120Vac ±10%rms; HOT2-N: 120Vac ±10%rms; HO1-HOT2: 240Vac ±10%rms output phase difference HOT1-N and HOT2-N is 180°; HOT1-N and HOT1-HOT2 is 0°; HOT2-N and HOT1-HOT2 is 180° Nominal Output Frequency (Hz) 50Hz±1Hz,60Hz±1Hz AC Charger Nominal Charger Current 20A/35A/50A/70A/90A(According to the inverter model): adjustable 5 stages charging current; Over charge Protection Bat.VN15.5VDC for 12V battery. Bat.VN31.0VDC for 24V battery、Bat.VN62.0VDC for 48V battery; beeps 0.5s every 1s & fault after 60s Solar charger Rated Charge Current alternative 40A/60A/120A FV Input Voltage range 15VDC-40VDCfor 12VDC, 30VDC-75VDCfor 24V DC, 60-145VDCfor 48V Max.FV open circuit array Voltage 12V for 40Vdc, 24V for 75Vdc, 48V for 145Vdc Charger mode MFPT FV Low Voltage Re-connect FVNBat.V+3V FV Low Voltage Disconnect FVWBat.V Efficiency N97% Battery Voltage Nominal DC input Voltage 12/24/48VDC 24/48VDC 48VDC Low Battery Alarm 10.5VDC±0.3VDC for 12VDC 21VDC±0.6VDC for 24VDC 42VDC±1.2VDC for 48VDC Low DC input shut & down 10VDC±0.3VDC for 12VDC 20VDC±0.6VDC for 24VDC 40VDC±1.2VDC for 48VDC High DC input Alarm & Fault 16VDC±0.3VDC for 12VDC 32VDC±0.6VDC for 24VDC 64VDC±1.2VDC for 48VDC Efficiency Efficiency(Battery Mode) N87% Efficiency (Line Mode) >98% Transfer Time AC to DC 20ms(max) DC to AC 15ms(max) System Parameter Over-Load Protection 110% <150%, 0.5s="" 1s="" beeps="" every="">150%, beeps 0.5s every 1s, and Fault after 20s <150%,>Output Short Circuit Protection YES Surge Rating 1:3( VA) FV protections Low battery, over charging, over load, over terrp Indicators LED+LCD Display General Specifications Operating Temperature Range 0°C 〜40°C Storage Temperature -15°C〜60°C Operation humidity 5% to 95%(non-condensing) Audible Noise 60dB max 80dB max cooling Forced air,variable speed fan Dimension L*W*H(mm) 480*336*190nm 530*400* 190mm 627*416*204nm Net Weight(kg) 24kg 27kg 30.5kg 42kg 46.5kg 48.5kg 64kg 73g 79kg Key words:- UL listed inverter
