EX3320K-EX3380K Online UPS High Frequency UPS

Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.
  • Specifications
  • Details
  • Enquiry
  • Technical Data
  • Downloads
    • Commodity name: EX3320K-EX3380K Online UPS High Frequency UPS
    • Commodity ID: 1037782402237030400

    Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.

    Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.





    EX33 high frequency online UPS is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and

    frequency fluctuation.Each single phase of the EX33 series UPS is converted to DC through an individual PFC circuit and then transferred to AC though Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In addition, the controlling of battery charging can extend the battery's serve lifetime effectively and the twin-channel line input improves the system's reliability.Furthermore, the series product is enhanced with excellent performance in protection level, which ensures the stability of UPS working in industrial environment with large dusts.



    Features:

    Excellent performance in industrial environment protection

    ♦ Just with the standard product, IP21 protection level (protecting the machine from the intrusions of solid material with the diameter larger than 12mm or the water drops) is achieved. If a higher protection level is required, the optional proof accessories can help to increase the protection level in industrial environment and safeguard the UPS’s security of operation in bad environment.

    N+X parallel redundancy (compatible to battery share in the parallel mode)

    ♦ The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost. N stands for the minimum amount of UPS in the load and X stands for the amount of redundant UPS in the system. The bigger the number of X is, the higher the reliability of the system.

    ♦ The advanced controlling strategy is adopted to save the customer’s investment by sharing a battery unit in the parallel redundancy mode. Intelligent management of battery charging and discharging.

    ♦ The CPU controlled advanced intelligent charging of battery enables the UPS’s charger to rectify the charging parameter, and provide the optimum charging modes in the answer to the environment, types and amounts of cells, and the using condition of the battery. The scientific charging mode extends the battery’s service lifetime. The optional addition to charging units shortens the time duration for the battery units recharging.

    Remote monitoring

    ♦ Communication interfaces like RS232/RS485, intelligent Slot are provided and CMC, WebPower cards of ZLPOWER Company are available for the realization of remote management and monitoring demand.

    High-efficient DSP chip

    ♦ The digital Ti DSP controlling chip provides precise data processing capability with excellent performance in output and reliability.

    Twin-channel line input

    ♦ The UPS provides customer security in power supply with intelligent choice between two-line input or one-line input according to the actual condition.

    Flexible battery arrangement

    ♦ Flexible arrangement of the amount of accumulators in each battery (32, 30, or 28) can be achieved through the parameter resetting in the EPS33 series UPS, which effectively solves the question that the damage of some individual cell may influence the life of the whole battery unit by eliminating the damaged ones from the unit in the process of using UPS.

    Outstanding electric property

    ♦ The efficiency of the machines is as high as 93% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.

    ♦ The EPS33 series UPS is designed according to China’s power grid with a broader range of input voltage from 210VAC to 475VAC, which ensures that it can be applicable in the awful grid environment or different power supple equipment like generator with its extraordinary input frequency.

    ♦ The factor that the technology of IGBT FM intelligent rectifier and inverter is used, the input power factor is as high as 0.99, and the input Current harmonic wave is as low as 3% makes the output voltage electric property more extraordinary.

    ♦ Powerful overload capacity: the UPS can work normally under the condition of 110-125% load to 10 minutes, and 1 minutes in the condition of; 125-150% load. It also has the output short protection capability



    Main Features:

    1. Excellent performance in industrial environment protection

    Just with the standard product, IP21 protection level (protecting the machine from the intrusion of solid material with the diameter larger than 12mm or the water drops) is achieved. If a higher protection level is required, the optional dust-proof accessories can help to increase the protection level in industrial environment and safeguard the UPS's security of operation in bad environment.

    2. N+X parallel redundancy (compatible to battery share in the parallel mode)

    The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost. N stands for the minimum amount of UPS in the load and X stands for the amount of redundant UPS in the system. The bigger the number of X is, the higher the reliability of the system.

    The advanced controlling strategy is adopted to save the customer's investment by sharing a battery unit in the parallel redundancy mode.

    3. Intelligent management of battery charging and discharging

    The CPU controlled advanced intelligent charging of battery enables the UPS's charger to rectify the charging parameter, and provide the optimum charging modes in the answer to the environment, types and amounts of cells, and the using condition of the battery. The scientific charging mode extends the battery's service lifetime. The optional addition to charging units shortens the time duration for the battery units recharging.

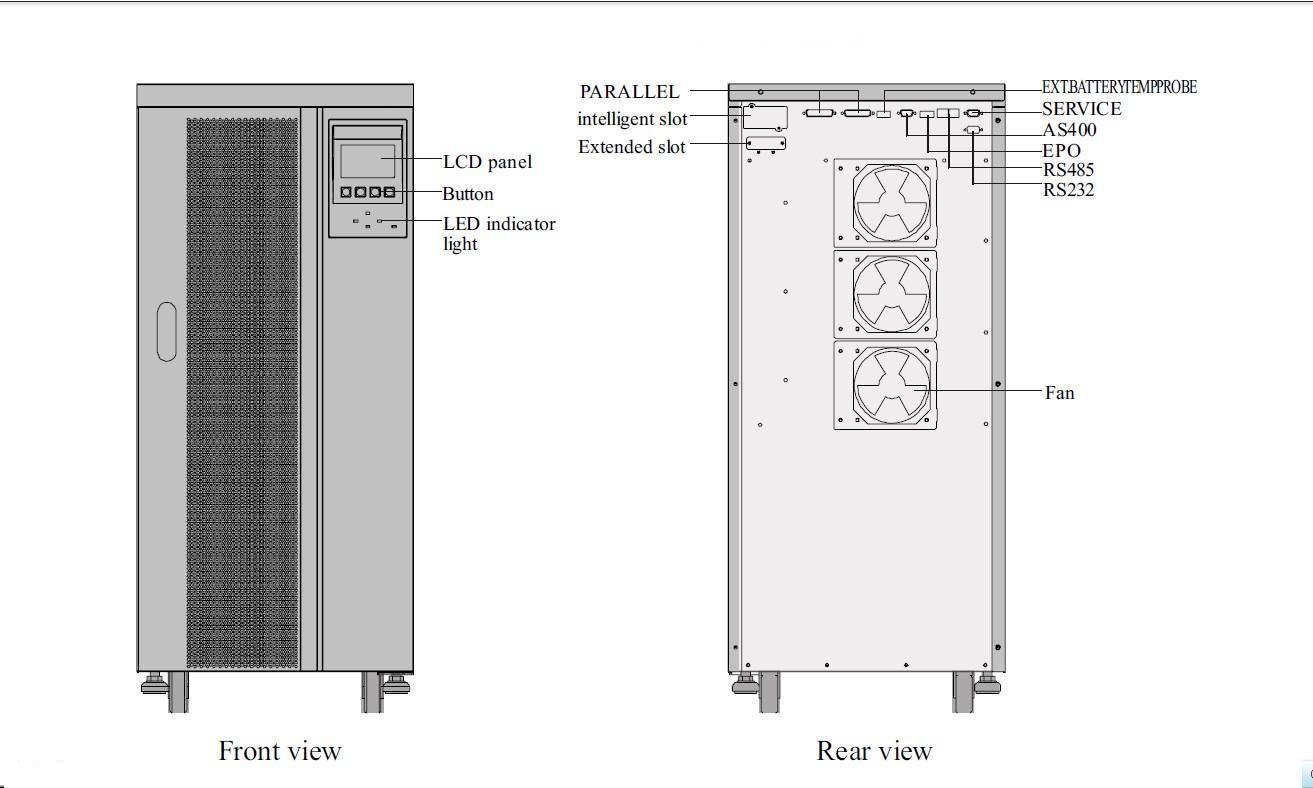

    4. Frontal-board LCD display panel operation and maintenance

    The full consideration of customer's efficiency in using the UPS is embodied in the module design and frontal-board maintenance, which saves time for repairing and improves the machine's usability.

    5. Twin-channel line input

    The UPS provides customer security in power supply with intelligent choice between two-line input or one-line input according to the actual condition.

    6. Remote monitoring

    Communication interfaces like RS232/RS485, Intelligent Slot are provided and CMC, WebPower cards of ZLPOWER Company are available for the realization of remote management and monitoring. In addition, the optional AS400 card is suitable for the connection of stem point, which enriches the customer's choice out of the monitoring demand.

    7. High-efficient DSP chip

     The digital Ti DSP controlling chip provides precise data processing capability with excellent performance in output and reliability.

    8. Outstanding electric property

    The efficiency of the machines is as high as 93% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.

    The EX33 series UPS is designed according to main power grid with a broader range of input voltage from 210VAC to 475VAC, which ensures that it can be applicable in the awful grid environment or different power supple equipment like generator with its extraordinary input frequency.

    The factor that the technology of IGBT FM intelligent rectifier and inverter is used , the input power factor is as high as 0.99, and the input current harmonic wave is as low as 3% makes the output voltage electric property more extraordinary.

    Powerful overload capacity: the UPS can work normally under the condition of 110-125% load to 10 minutes, and 1 minute in the condition of ; 125-150% load. It also has the output short protection capability.

    9. Flexible battery arrangement

    Flexible arrangement of the amount of accumulators in each battery (32, 30, or 28) can be achieved through the parameter resetting in the EX33 series UPS, which effectively solves the question that the damage of some individual cell may influence the life of the whole battery unit by eliminating the damaged ones from the unit in the process of using UPS.



    Technical specification for Three phase high frequency online UPS EX3320K-EX3380K:

    Model

      EX3320K

      EX3330K

     EX3340K

     EX3360K

     EX3380K

    Rated Capacity

    20KVA/16KW

    30KVA/24KW

    40KVA/32KW

    60KVA/48KW

    80KVA/64KW

    Input

    Voltage

    210-475VAC

    Frequency

    40-70Hz

    Phase Line

    Three-phase 4 line + earth line

    THDI

    <3%

    Input Power Factor

    >0.99

    Twin-channel Line Input

    Yes

    Battery

    Type

    Valve-regulated lead-acid storage battery

    Standby Time

    Depended by external battery bank

    Output

     Voltage

    380VAC / 220 VAC

    Frequency

    50/60Hz

    Phase line

    Three-phase 4 line + earth line

    Rated output power factor

    0.8

    Overload Capacity

    125% maintain 10minutes

    150% maintain 1minutes

    Efficiency

    Line Input Mode

    93%

    94%

    BAT Mode

    93%

    94%

    ECO Mode

    98%

    Intelligent Speed Control of Fan

    yes

    Display Device

    LCD

    I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning

    LED

    The operation state of UPS

    Warning Devices

    Two ways of alerting: BUZZER sound, lamp signal,

    Communication Interface

    RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot

    Operation

    Temperature

    0-40℃

    Environment

     Humidity

    <95% (non condesing)

    Weight

    Net weight(include transformer)

    82Kg/208Kg

    110Kg/275Kg

    114Kg/314Kg

    282Kg

    306Kg

    Gross weight(include transformer)

    122Kg/248Kg

    160Kg/325Kg

    164Kg/364Kg

    356Kg

    380Kg

    Dimension  L*W*H(mm)

    643×420×925

    710×470×1150

    800×600×1850
