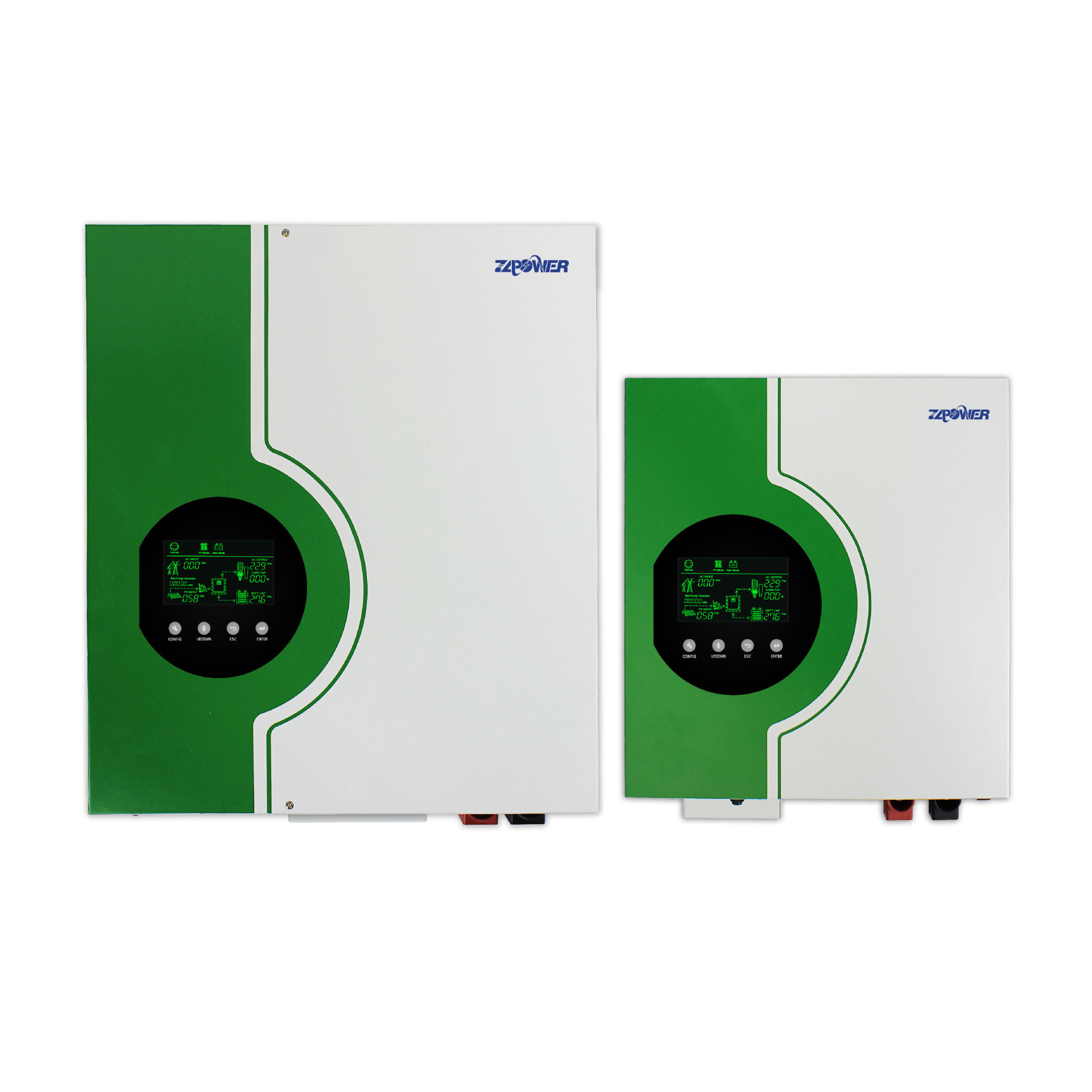

PVM Plus 3.5KVA/5.5KVA Off Grid Energy Storage Inverter

PVM PLUS is third generation off-grid inverter with rich new functions. Its comprehensive LCD display offers user-configurable and easy-accessible button operation. Battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.It's also integrated with RS232 interface ready for mobile monitoring and supports USB on-the-go function to facilitate data upload/download. Battery independency design enhances this inverter to operate without battery connected.

MESSAGE

Category：

Hybrid Solar Inverter

Downloads：

Features
Specifications
Download

- Commodity name: PVM Plus 3.5KVA/5.5KVA Off Grid Energy Storage Inverter
PVM PLUS is third generation off-grid inverter with rich new functions. Its comprehensive LCD display offers user-configurable and easy-accessible button operation. Battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.It's also integrated with RS232 interface ready for mobile monitoring and supports USB on-the-go function to facilitate data upload/download. Battery independency design enhances this inverter to operate without battery connected.

♦ Pure sine wave solar inverter

♦ Output power factor 1.0

♦ Parallel operation up to 9 units

♦ High PV input voltage range

♦ Battery independent design

♦ Built-in 80A MPPT solar charger

♦ Three phase output using either 3 units (16.5KW) or max 9 units(49.58KW)

♦ Battery equalization function to optimize battery performance and extend lifecycle

♦ Reserved communication port (RS485, CAN，USB or RS232)
Key words:
- solar inverter
- Off Grid Hybrid Solar Inverter
- On Grid Hybrid Solar Inverter
- pure sine wave
- inverter charger
- hybrid solar inverter
- 3.5kw off grid solar inverter
- 5.5kw off grid solar inverter
- 5kw solar inverter
- 5kw inverter
- 5.5kw inverter
- 3 phase inverter

MODEL	PVM Plus 3500-24	PVM Plus 5500-48
Rated Power	3500VA/3500W	5500VA/5500W
INPUT
Voltang	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers);120-280VAC(For Home Appliances)
Frequency Range	50/60HZ(Auto sensing)
OUTPUT
ACVoltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficiency (Peak)	up to 93.5%
Transfer Time	10ms (For Personal Computers); 20ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit	460VDC	460VDC
Maximum PV Array Power	5500W	5500W
MPPT Range @ Operating Voltage	120~450VDC	120~450VDC
Maximum Solar Charge Current	100A	100A
Maximum AC Charge Current	80A	80A
Maximum Charge Current	100A	100A
PHYSICAL
Dimension, D x W x H (mm)	550x420x225
Net Weight (kgs)	11.5	12.1
Communication Interface	CAN/RS485/USB/RS232/Dry contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Brochure PVM Plus 3.5-5.5KW_DS.pdf
